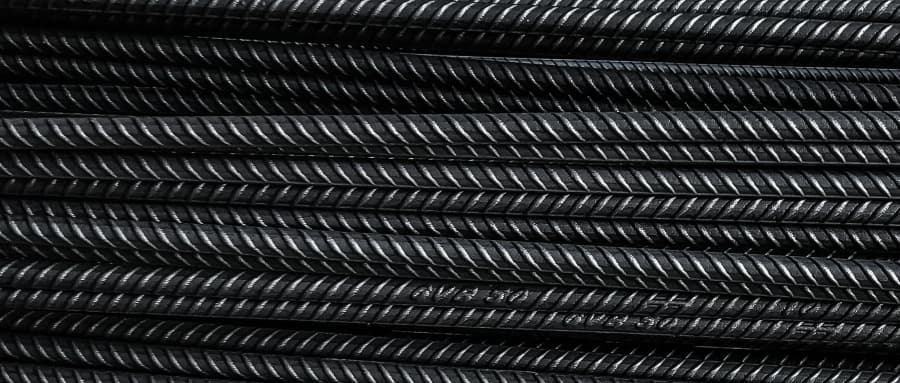

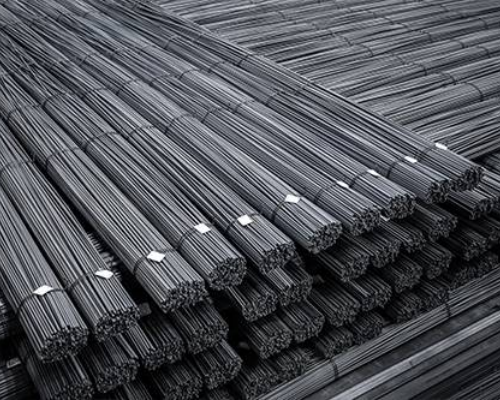

Steel Rebar

GRADE : ASTM A615
Alloy: A615
Characteristics
A615 Widely used as a tensioning device to reinforce concreate and masonry structures holding concrete in compression. Easy to cut, and cold form.

INQUIRY

Product Details

Product Tags

It is part of our commitment at TIANJIN PALM-BRI INDUSTRY & TRADING CO.,LTD.to provide our customers with assurance that they are receiving only the best-quality products. ISPC produces deformed rebar, rebar coil and plain wire rods in a wide range of standards to conform to our customers’ needs for use in welding electrodes, steel mesh, wires, bolts and springs, as well as bending/cutting machine use and cut to bend sizes.

We have in place the latest automation upgrades that enable each plain coil to weigh up to 1,700 kg. All of our products are manufactured to meet international standards for industrial, commercial, residential and infrastructure buildings. Each grade has a wide variety of diameters from which you can choose. You can also order according to your specifications. The rebar coil and plain wire rod are normally used in downstream industries to manufacture binding wires, barbed wires, wire nets, gabion and chain-link fencing, screws, hangers, nails and welded wiremesh.

Our adherence to both international and local safety standards means that we can guarantee our customers that every product we manufacture has met all the required health and safety specifications. The deformed rebar, rebar coil and plain wire rod are all certified in regards to their chemical and physical properties. This means that we produce only the highest quality standards of rebar products and plain wire rods.

	C% Max	S% Max	P% Max	YS Mpa Min	TS Mpa Min	EL% GL-200	Bend Test
Grade 40	0.30	0.04	0.04	280	420	as per spc.	as per spc.
Grade 60	0.30	0.04	0.04	420	550	as per spc.	as per spc.
SAE 1006	0.08	0.04	0.04	210	350	as per spc.	as per spc.
SAE 1008	0.1	0.03	0.03	220	360	as per spc.	as per spc.
SAE 1010	0.13	0.03	0.03	260	400	as per spc.	as per spc.

Dimensions

A) Rebar and coil ASTM A 615

Nominal Diameter mm	No. of Bars per bundle	Nominal Weight kg/m	Nominal CSA mm2	Spacing Max mm	Rib Height min mm	Max mm	Rib Gap Max mm
8	422	0.395	50.3	5.60	0.32	0.64	3.0
10	270	0.617	79	7.00	0.40	0.80	3.8
12	188	0.888	113	8.40	0.48	1.00	4.6
14	138	0.888	154	9.80	0.63	1.20	5.30
16	106	1.58	201	11.20	0.72	1.40	6.1
18	84	2.00	254	12.60	0.90	1.60	6.9
20	68	2.47	314	14.00	1.00	2.00	7.7
22	56	2.98	381	15.40	1.10	2.20	8.4
25	44	3.85	491	17.50	1.25	2.60	9.6
28	34	4.83	616	19.60	1.40	2.80	10.70
32	26	6.31	804	22.40	1.60	3.00	12.50
36	21	7.990	1018	25.20	1.80	3.20	13.80
40	17	9.865	1257	28.00	2.00	3.60	15.3
50	11	15.40	1963	35.00	2.50	4.60	19.1
